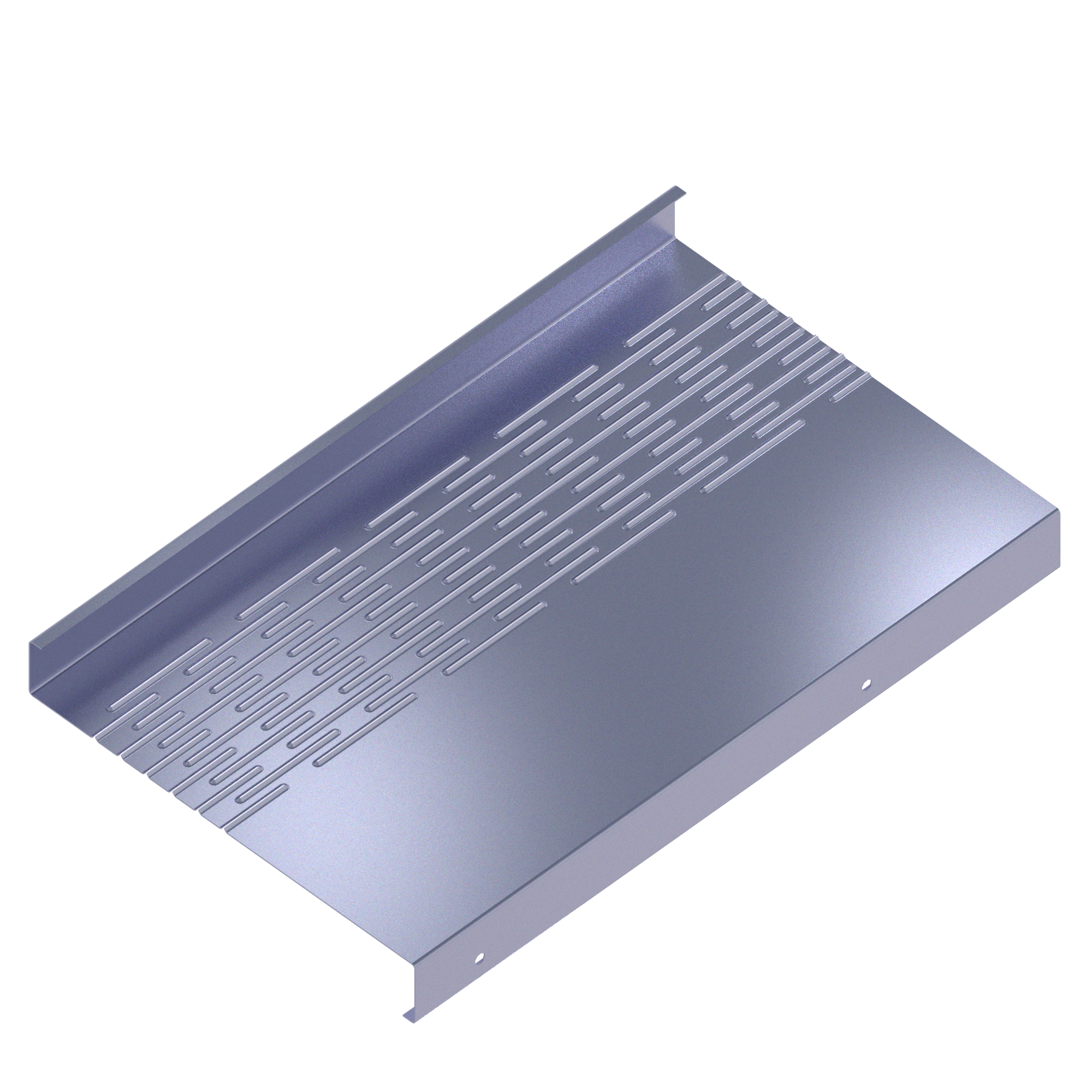

ZY ZM-Facade batten slotted C5
Slotted asymmetrical Z profile in Magnelis (R) for use with UYA and UYAK rails and ventilated facade battens, VFL, in the Recon XL facade system. Corrosivity class C5.
Standard: EN 1090-1:2009+A1:2011*
Material: S250GD+ZM310, t=1.0
Article information
| Item number | Width | Length | Thickness | Weight (kg/unit) | Min/max length | Number of bnt / pallet | Min. order | Stock item | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 4346 | ZY 150 ZM-1.0 | 150 | 1000 | 1,0 | 1.947 | 400 / 12,000 | 1 / 1 | - | No | |
| 4347 | ZY 200 ZM-1.0 | 200 | 1000 | 1,0 | 400 / 12,000 | 1 / 1 | - | No | ||
| 4356 | ZY 250 ZM-1.0 | 250 | 1000 | 1,0 | 400 / 12,000 | 1 / 1 | - | No | ||
| 4359 | ZY 300 ZM-1.0 | 300 | 1000 | 1,0 | 400 / 12,000 | 1 / 1 | - | No |
Environmental information
-
The product is available in Prodikt
Read more here
Environmental impact indicators
| EPD (A1 - A3) Steel 5b | Unit | |
|---|---|---|
| Environmental impact | 3.00E+03 |
|
| Ozone depletion | 2.71E-10 |
|
| Acidification | 9.69E+00 |
|
| Eutrophication | 2.62E+01 |
|
| Ground-level ozone | 2.71E-10 |
|
Assessments
Environmental Building 3.0
GOLD
Ind 13
GOLD
Ind 14
Environmental building 2.1 / 2.2
GOLD
Ind 14
GOLD
Ind 15
