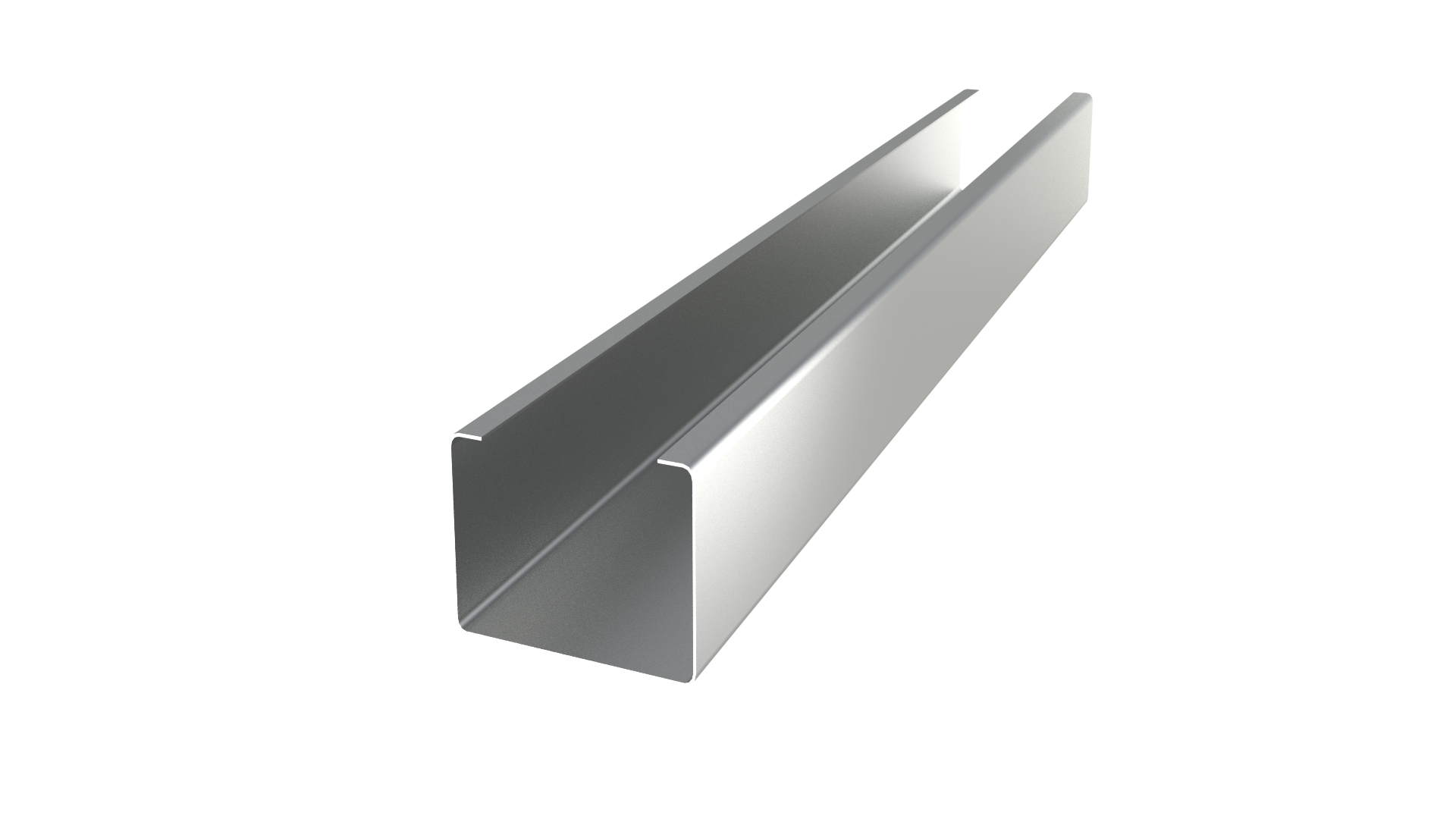

CF ZM-Regel wide flange C5
Magnelis (R) batten with a material thickness of 0.7 mm. The batten has wider flanges and is used together with Magnelis (R) U-profiles in environments with higher corrosion class requirements. For example, swimming pools, spa facilities, or commercial kitchens. CF ZM is well suited for use with harder cladding such as cement-based board materials. CF ZM replaces CH ZM.
Standard: EN 14195:2005
Material: S250GD+ZM310, t=0.7
Article information
| Item number | Width | Length | Thickness | Weight (kg/unit) | Min/max length | Number of bnt / pallet | Min. order | Stock item | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 4661 | CF 70 ZM-0.7 | 70 | 1000 | 0,7 | 400 / 12,000 | 2 / 160 | - | No | ||
| 4662 | CF 95 ZM-0.7 | 95 | 1000 | 0,7 | 400 / 12,000 | 2 / 128 | - | No |
Environmental information
-
The product is registered
Read more here -
Bvb ID: 56777Product Recommended
Read more here -
May be used in Nordic Ecolabel buildings but cannot be registered in the Nordic Ecolabel building product portal.
Read more here -
The product is available in Prodikt
Read more here
Environmental impact indicators
| EPD (A1 - A3) Steel 5a | Unit | |
|---|---|---|
| Environmental impact | 3.01E+03 |
|
| Ozone depletion | 3.08E-10 |
|
| Acidification | 9.67E+00 |
|
| Eutrophication | 2.58E+01 |
|
| Ground-level ozone | 3.08E-10 |
|
BREEAM SE 2017 v.1.1
GOLD
Food07
Exemplary level - The product does not contain phase-out or risk reduction substances (according to KEMI's definition and EDS Cat1/Cat2) above classification limits.
BREEAM SE 2013 v.2.0
GOLD
Food08
The product does not contain phase-out substances (according to KEMI's definition) above classification limits.
