EuroCeiling x Christian Berner

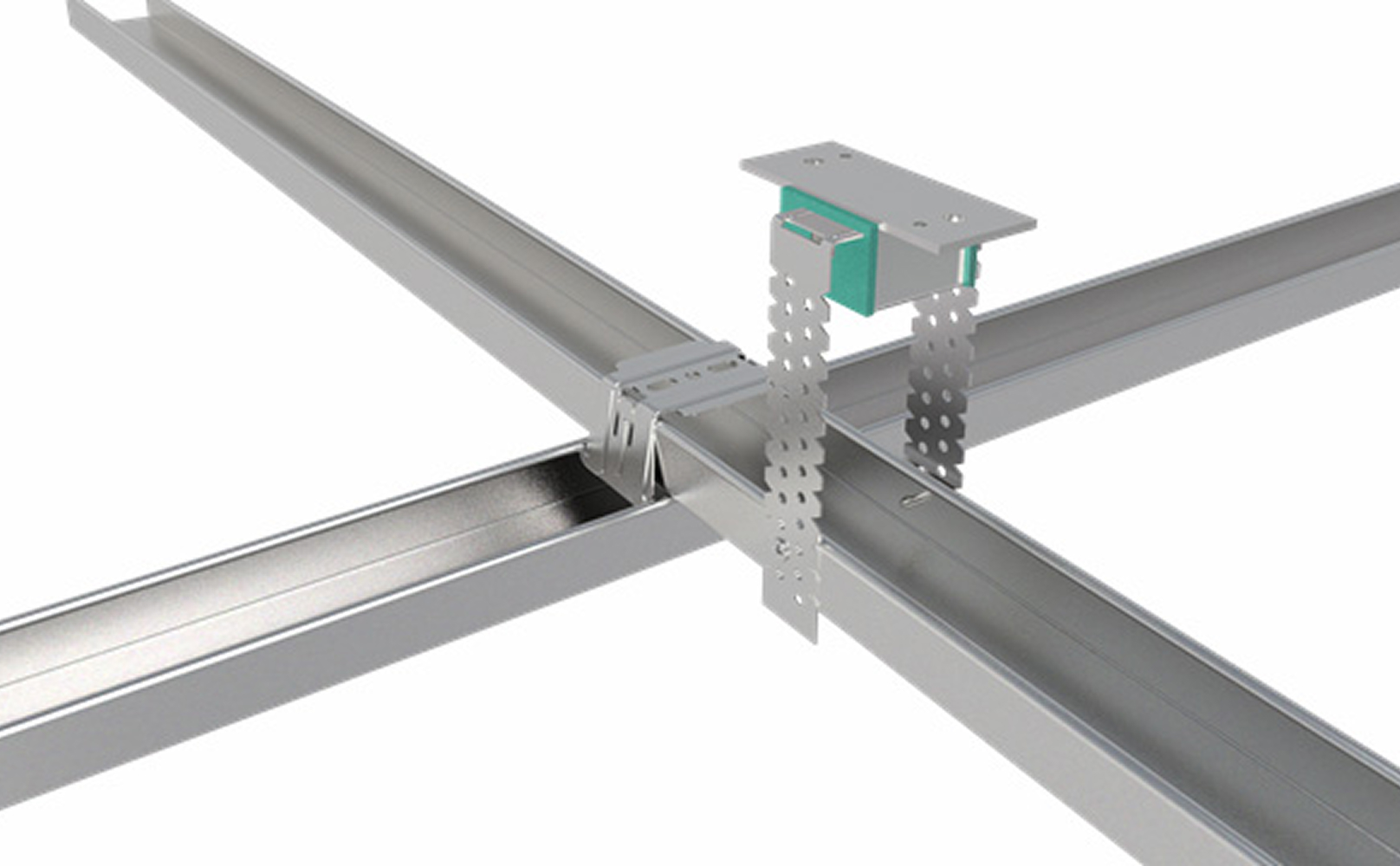

EuroCeiling with Sylomer hangers

EuroCeiling with Sylomer hangers is a collaboration between Europrofil and Christian Berner that combines the best of both worlds. The result is an efficient and comprehensive system for sound-absorbing suspended ceilings.

Our proven EuroCeiling system offers quick, easy, and efficient installation of suspended ceilings. The system is designed to provide the most optimal and cost-effective solution possible, with a focus on minimizing material usage. Since the components snap together without tools or screws, the ergonomic and occupational health benefits are also clear. Compared to a traditional suspended ceiling where the profiles are installed with screws, you save over 600 screws for a 100^m² ceiling.

Christian Berner’s Sylomer hangers are installed to reduce impact and airborne noise between floors. They provide excellent insulation even at very low frequencies and are suitable for all types of floor structures. Thanks to the Sylomer hanger, the number of gypsum boards in the suspended ceiling can often be reduced, saving both materials and time. Together with the efficient, screw-free EuroCeiling installation system, this offers a complete suspended ceiling solution for spaces with high sound insulation requirements, such as movie theaters, schools, restaurants, music studios, equipment rooms, and gyms, among others.

Benefits of EuroCeiling with Sylomer hangers

The components “click” together without the need for tools
Fewer components, less material
Stable and secure installation
Cost-effective and ergonomic
Insulates against both impact and airborne noise at very low frequencies
Improvement already at 50 Hz
Fewer layers of drywall are needed to achieve the same level of sound reduction
Low building height

Quantity calculation tool

Calculate material consumption

A collaboration with Christian Berner

Christian Berner isolates vibrations, structure-borne noise, impact noise, and ambient noise, thereby creating healthy work and living environments. Solutions that protect people and sensitive equipment, and create better and quieter products.

See more at Christian Berner

Stability

The stable suspensions make the substrate virtually rigid both upwards and downwards, which means faster, easier, and safer board installation. The profiles are made of 0.6 mm thick sheet steel, which gives
a stable substrate and a good screw fastening that is also suitable for harder board materials such as fiber gypsum.

Screwing of sheet material

To simplify the installation of board material, the profiles in the system have wide contact surfaces. The primary and cross profiles are 60 mm wide and have a center mark to make it easier to align both profiles and board material. The wide contact surface allows for increased edge distance when screwing, which in turn minimizes the risk of cracked board edges.

Environment

The components are registered and assessed in
Basta, Byggvarubedömningen, SundaHus, and Prodikt. For even lower climate impact, choose EuroCeiling in our Evolution environmental steel with more than 70% lower_{CO2 emissions}.
